Revolution Super Silent High Power EC Vector

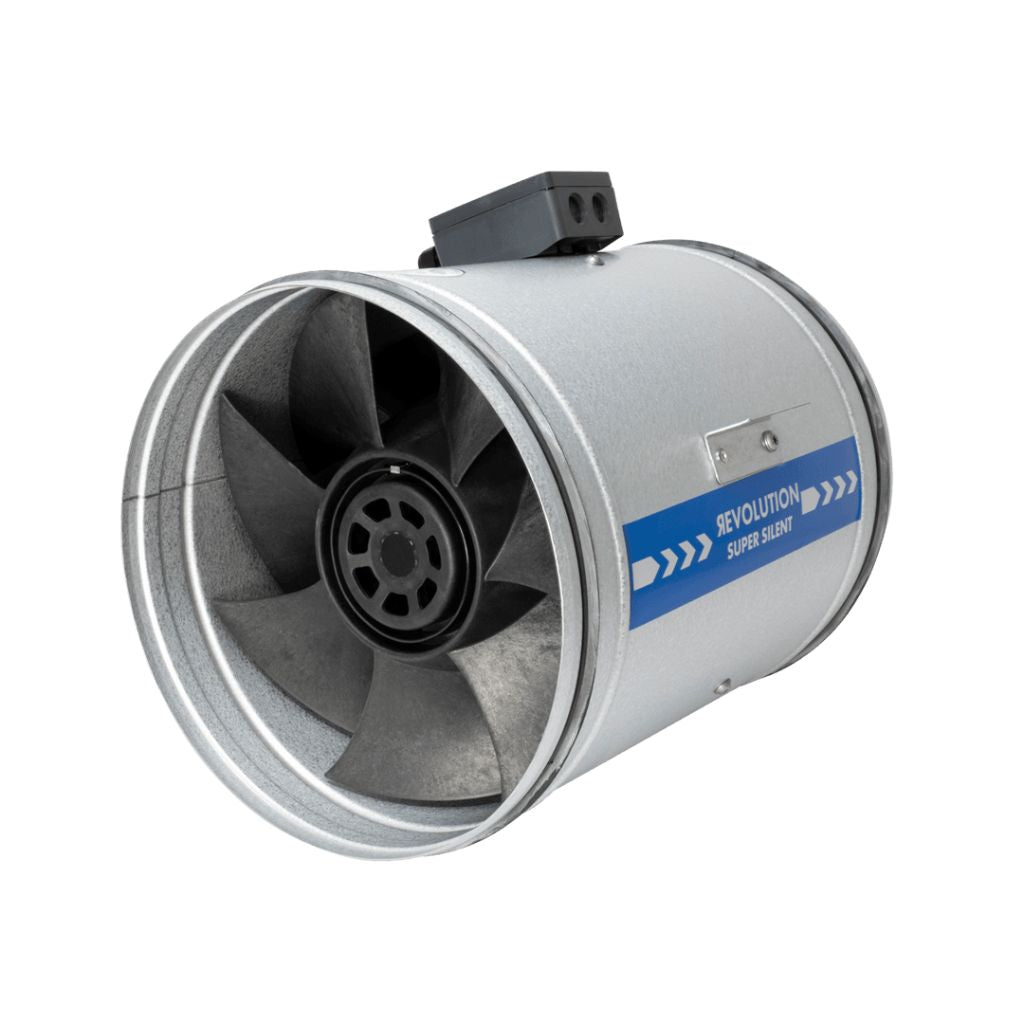

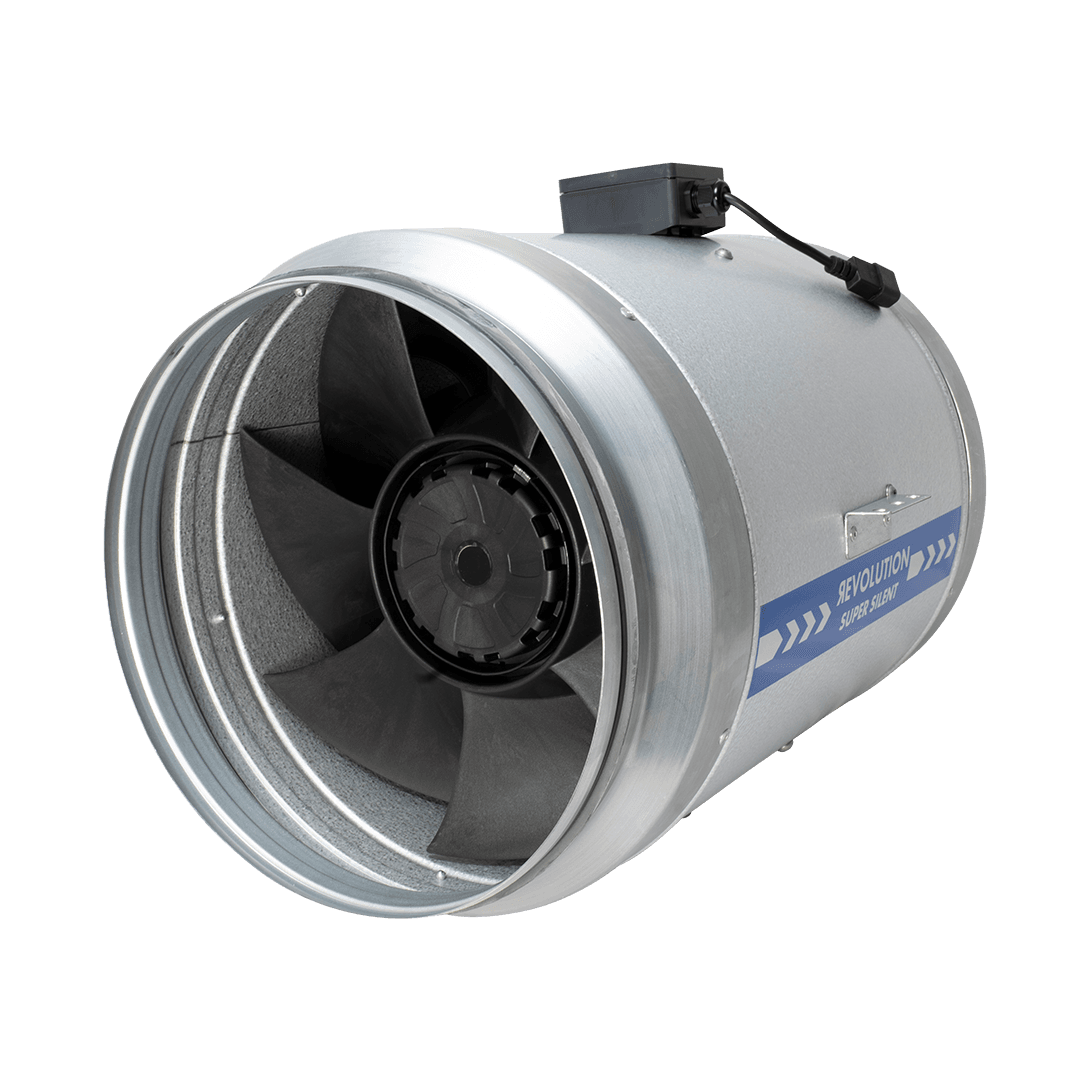

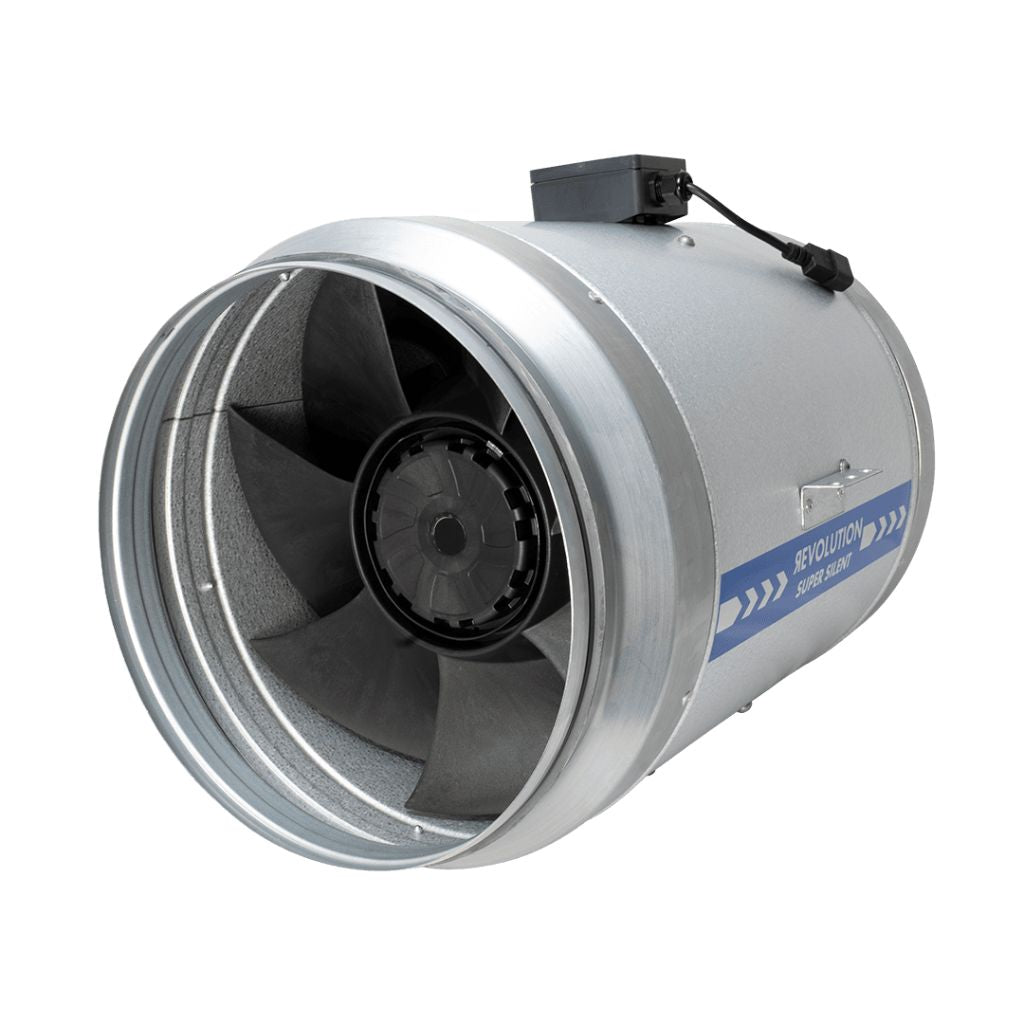

Revolution Super Silent High Power EC Vector – Professional Silenced EC Extractor Fan for Grow Rooms & Ventilation

Experience exceptional extraction performance with significantly reduced operating noise using the Revolution Super Silent High Power EC Vector Fan, a premium, high-capacity extractor fan designed for large hydroponic grow rooms, professional indoor cultivation and demanding ventilation systems.

Manufactured in Europe by Systemair, the Revolution Super Silent combines advanced EC motor technology, an aerodynamically optimised impeller and a fully sealed acoustic housing to deliver outstanding airflow, excellent static pressure and energy-efficient operation.

With maximum extraction capacities of up to 5,929m³/h, this professional silenced fan offers a powerful ventilation solution for larger growing environments where reliable airflow and noise reduction are essential.

Advanced Acoustic Silencing Technology

The Revolution Super Silent High Power EC Vector features a durable, fully sealed steel housing designed to minimise air leakage and reduce operational noise.

Its carefully engineered fan assembly includes a balanced impeller and specially designed airflow guide vanes, helping reduce vibration and turbulence whilst maintaining exceptional extraction performance.

This combination of powerful extraction and integrated sound reduction makes the Revolution Super Silent ideal for environments where large volumes of air must be moved without excessive noise.

Powerful EC Motor & Energy-Efficient Ventilation

Equipped with advanced electronically commutated (EC) motor technology, the Revolution Super Silent offers precise speed regulation and excellent electrical efficiency.

Unlike conventional AC extraction fans, EC technology allows growers to reduce fan speed whilst achieving substantial energy savings, particularly during periods when maximum extraction is unnecessary.

When connected to a compatible G.A.S EC Fan Controller, users can adjust ventilation performance to suit their growing environment.

Compatible thermostatic controllers can also automatically regulate extraction speeds according to temperature changes, providing greater control over grow room ventilation.

Available Sizes & Maximum Airflow Rates

Airflow figures represent maximum free-air capacities. Actual extraction performance will depend on carbon filters, ducting length, bends and installation resistance.

Key Features & Benefits

• Ultra-Quiet Silenced Construction – Fully sealed steel housing helps minimise operational noise and air leakage.

• High-Capacity Air Extraction – Powerful airflow options of 3,784m³/h and 5,929m³/h.

• Advanced EC Motor Technology – Energy-efficient extraction with precise speed-control capability.

• High Static Pressure Performance – Suitable for demanding carbon filtration and ducting systems.

• Aerodynamically Optimised Impeller – Maintains powerful, consistent airflow.

• Balanced Fan Assembly – Helps minimise vibration and operational noise.

• Custom-Designed Guide Vanes – Improve airflow efficiency and pressure performance.

• Variable Speed Compatible – Adjust extraction using a suitable G.A.S EC Fan Controller.

• Thermostatic Control Compatible – Supports automatic temperature-responsive ventilation with appropriate equipment.

• Integrated Thermal Motor Protection – Helps safeguard the motor against overheating.

• Maintenance-Free Motor Design – Engineered for long-term dependable operation.

• Durable Steel Construction – Strong housing suitable for professional ventilation installations.

• European Manufacturing – Designed for demanding horticultural applications.

• 2-Year Manufacturer's Warranty – Additional confidence and peace of mind.

Product Specifications

Brand: Revolution / Systemair
Product: Super Silent High Power EC Vector
Fan Type: Silenced EC Inline Extractor Fan
Motor Technology: Electronically Commutated EC Motor
Available Sizes: 315mm and 355mm
Maximum Airflow: 3,784–5,929m³/h
Power Consumption: 528W–738W
Housing: Fully Sealed Steel Acoustic Housing
Fan Speed Control: Compatible G.A.S EC Controller
Motor Protection: Integrated Thermal Protection
Manufacturing: Europe
Warranty: 2 Years
Applications: Hydroponics, Large Grow Rooms, Indoor Horticulture, Commercial Ventilation and Extraction Systems

Why Choose the Revolution Super Silent High Power EC Vector?

Maintaining powerful, reliable ventilation whilst minimising noise is essential for larger indoor growing environments.

The Revolution Super Silent High Power EC Vector combines exceptional extraction capacity, efficient EC motor technology and specialist sound-reducing construction to deliver outstanding professional ventilation performance.

From the 315mm model delivering up to 3,784m³/h to the powerful 355mm version reaching 5,929m³/h, this range provides the airflow required for demanding indoor extraction systems.

Whether you're upgrading a large hydroponic grow room or installing a professional ventilation system, the Revolution Super Silent delivers high-pressure extraction, quieter operation and excellent energy efficiency.

Choose the Revolution Super Silent High Power EC Vector for powerful, ultra-quiet extraction and professional hydroponic grow room ventilation.

Please note: A compatible G.A.S EC fan controller is required for adjustable speed control and is normally sold separately. Carbon filters and ducting are also sold separately. This is the High Power Super Silent range, not the smaller Revolution Silenced V2 EC Vector range.
