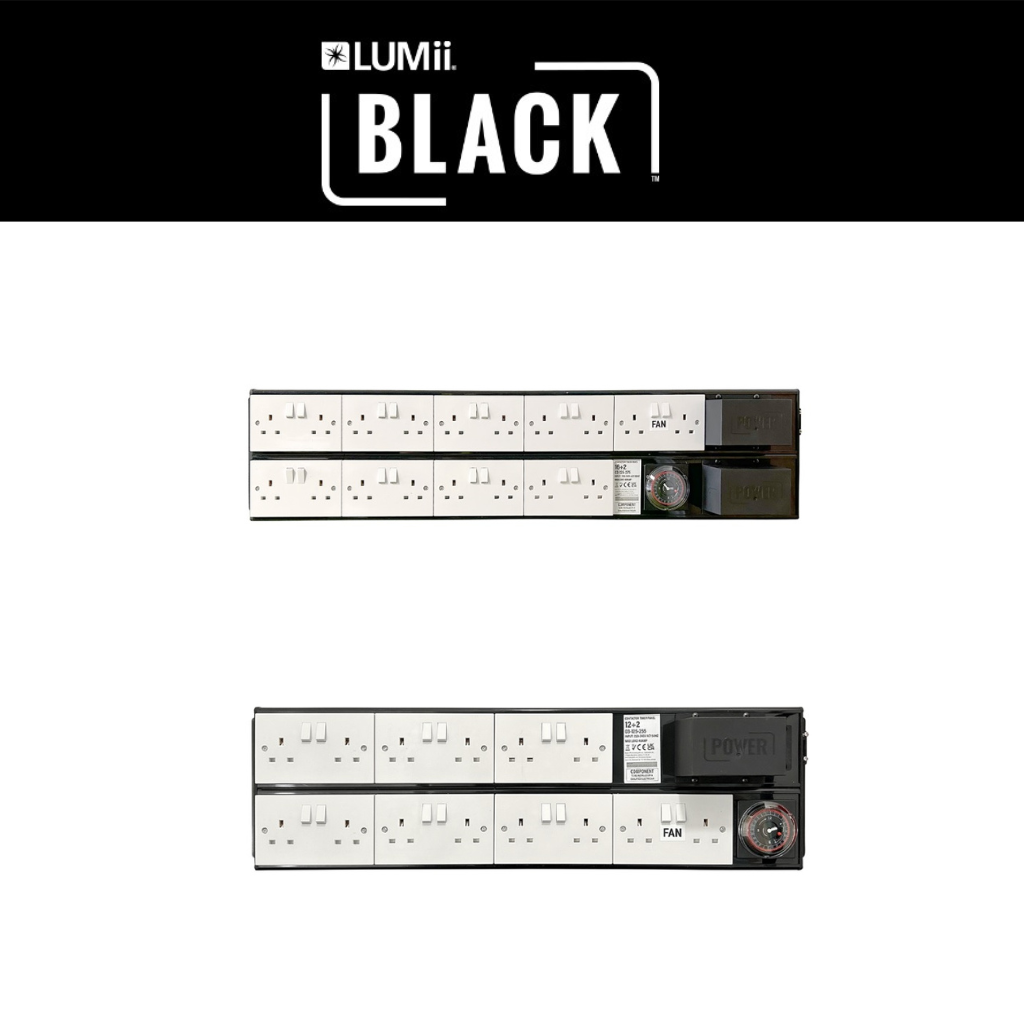

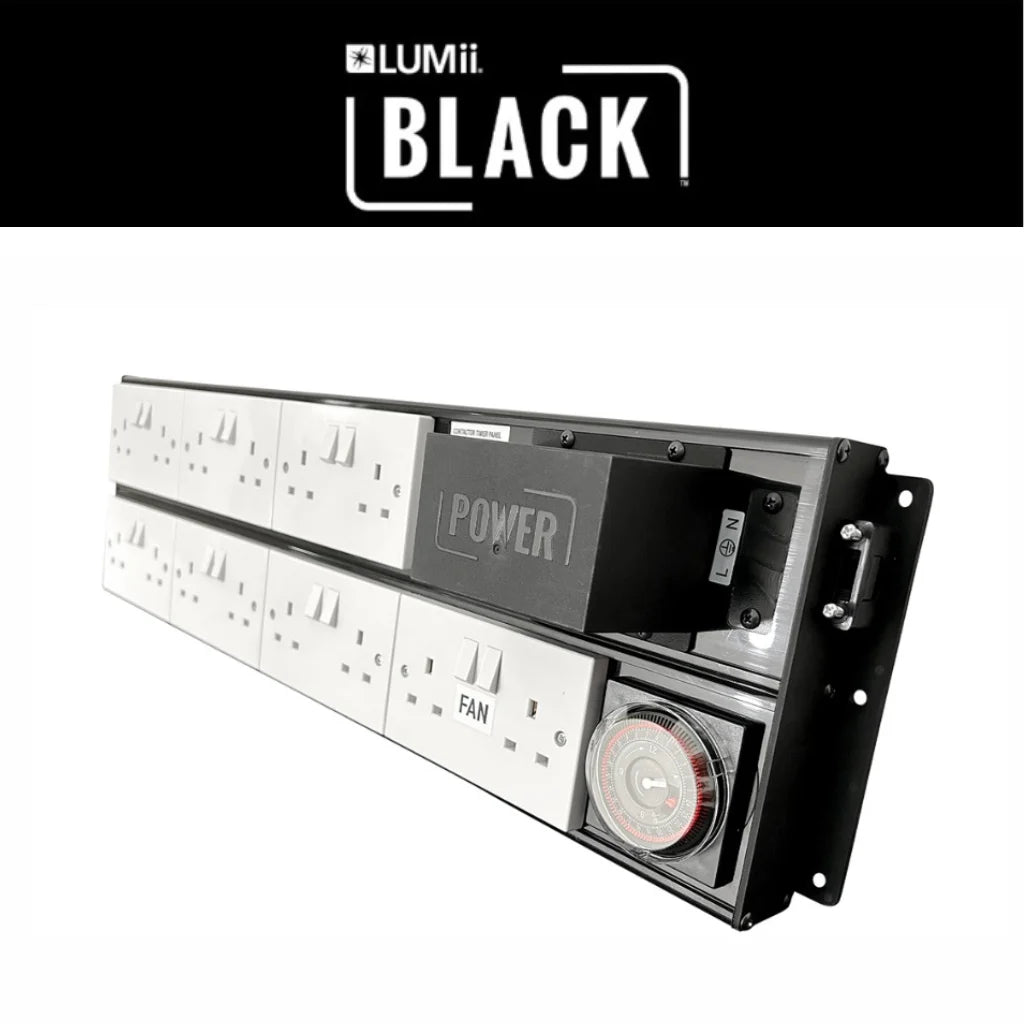

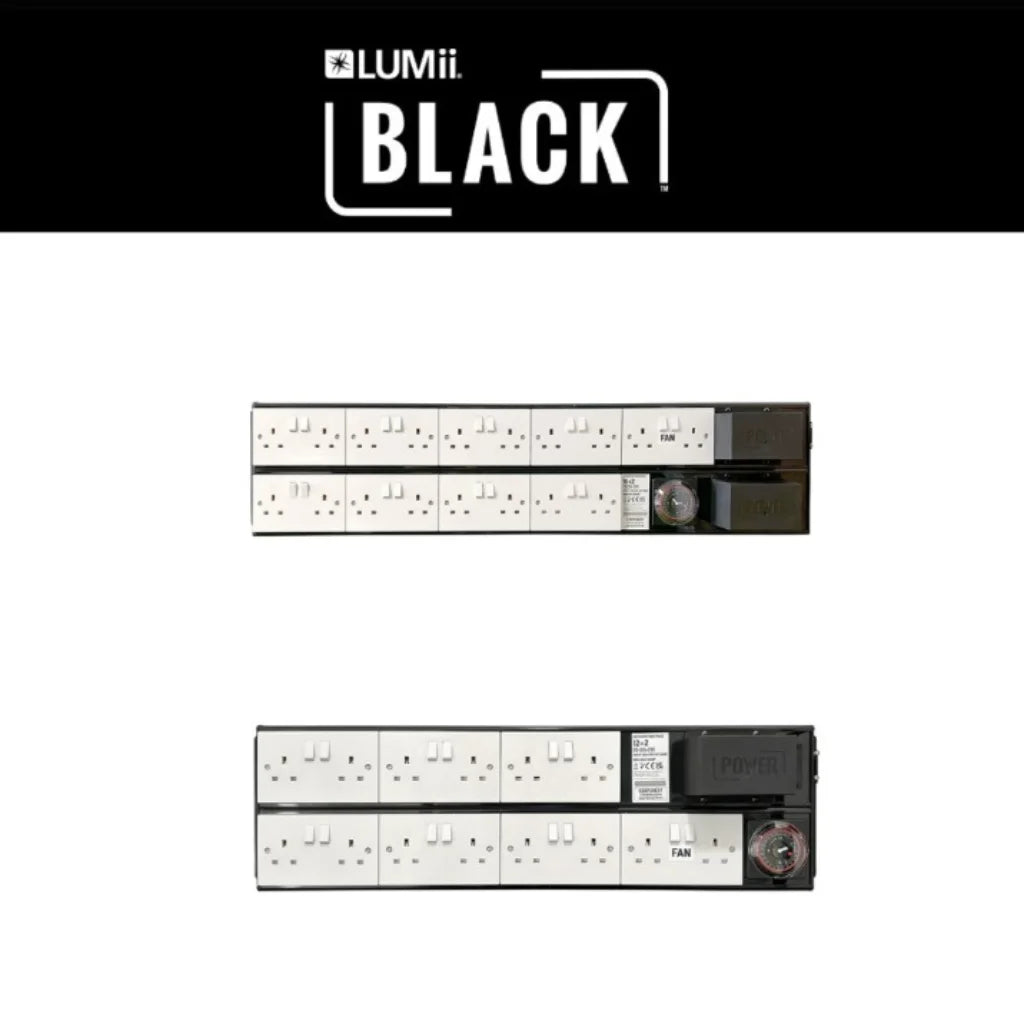

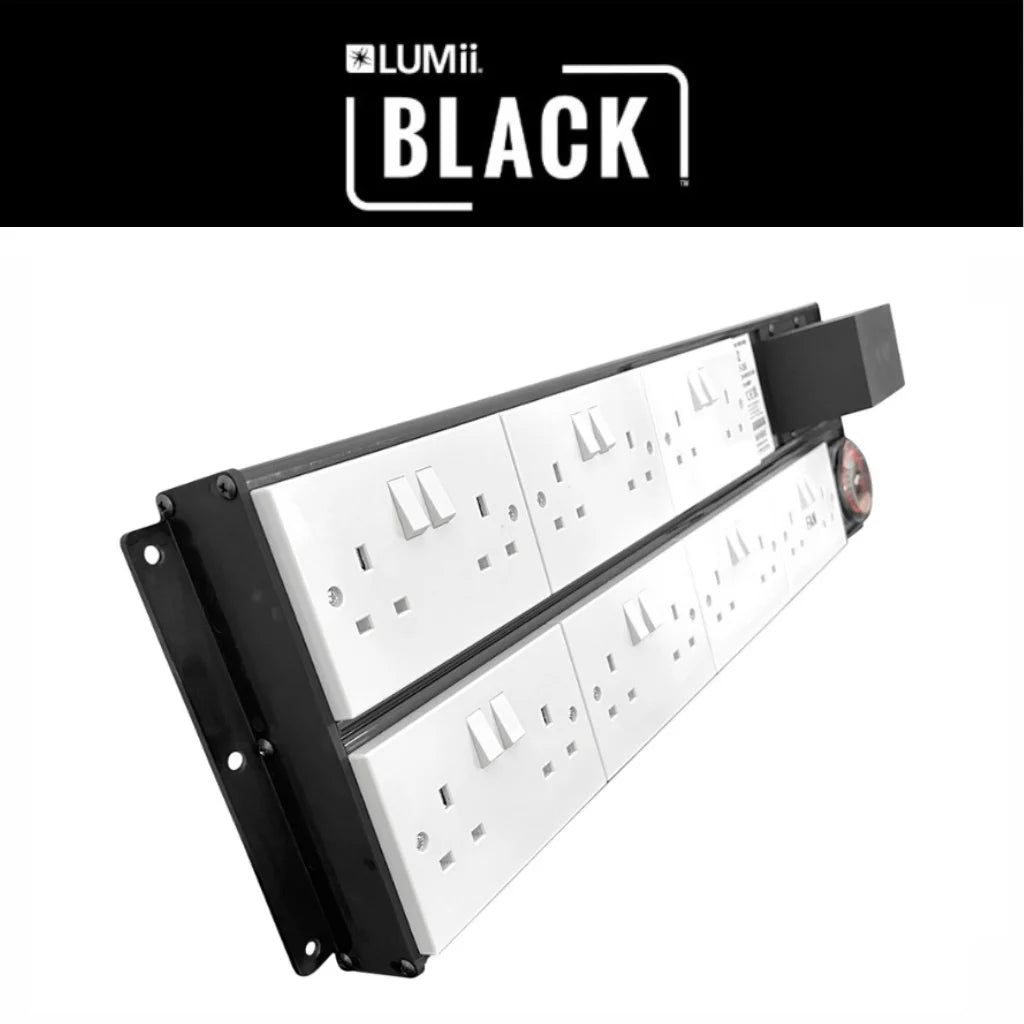

Contactor Timer Panel

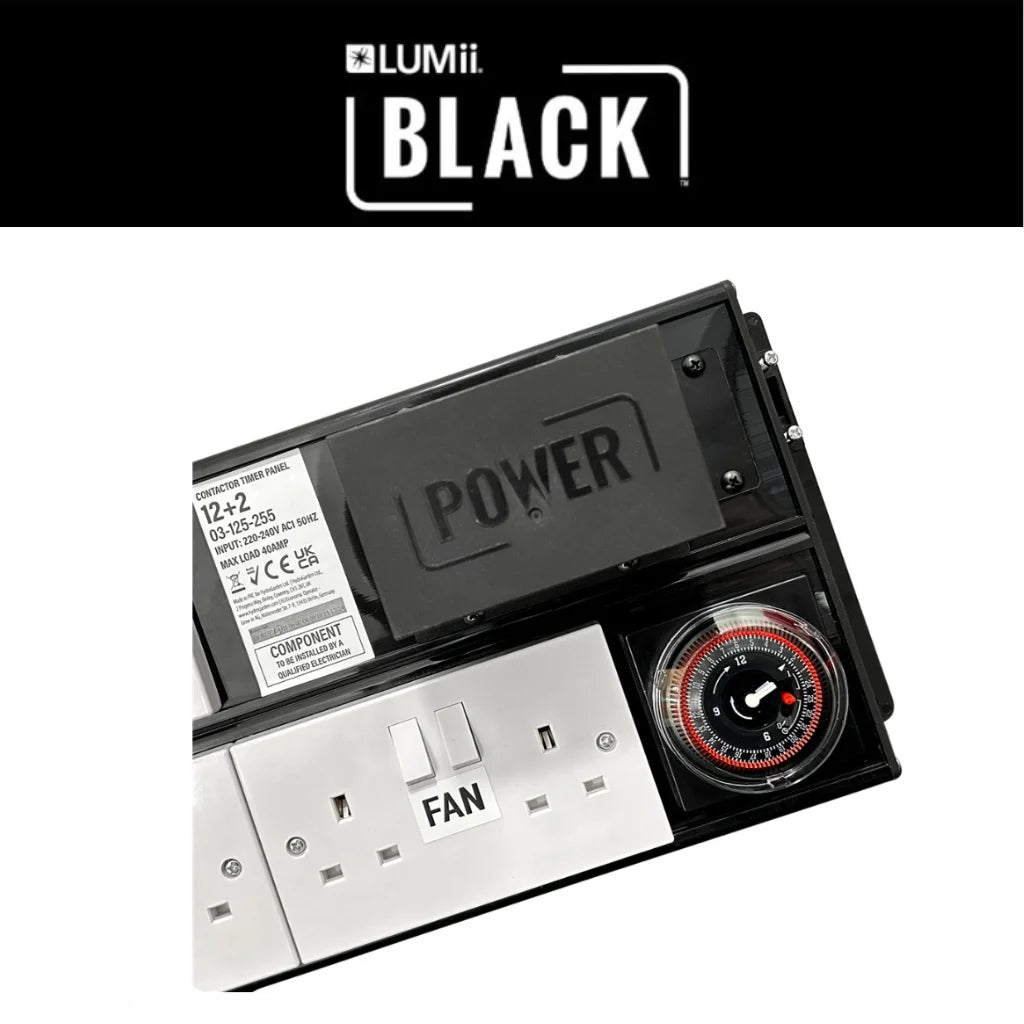

The Contactor Timer Panel enables scheduled operation of heavy load appliance without danger of timer contact burnout. As an electrical component, it must be installed by a qualified electrician or other competent professional to ensure compliance with relevant local regulations. Up to 12 & 16 appliances, with a combined total load (40 amps for the 12 way and 80 amps for the 16 way.)  can be plugged into the panel and scheduled synchronously over a 24-hour period. The timer has 96 fifteen-minute on/off segments, and can be set to “timed”, “continuously on” or “continuously off”. A further 2 power outlet sockets, marked “FAN”, are not timed, and have a continuous power supply.

Key selling points:

• Suitable for scheduling appliances with high inductive loads
• Can schedule from 12 to 16 appliances synchronously
• 2 untimed power outlet sockets
• Simple to operate

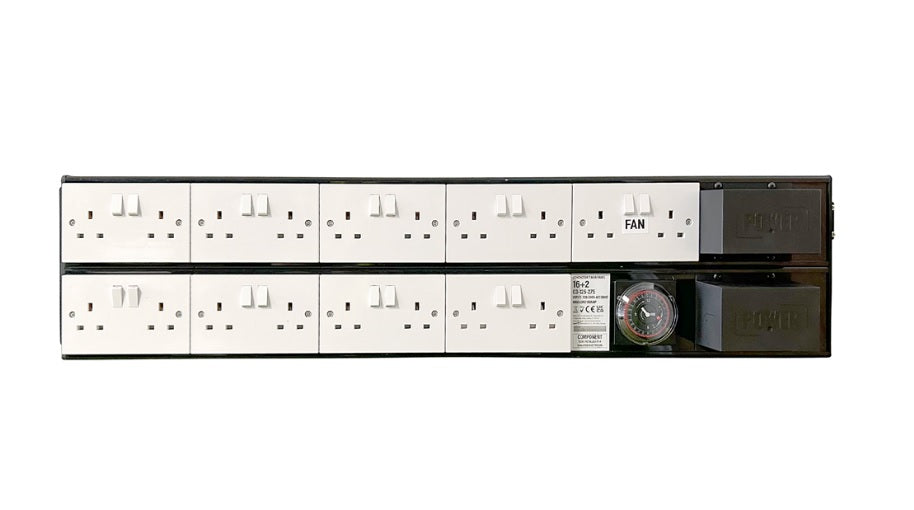

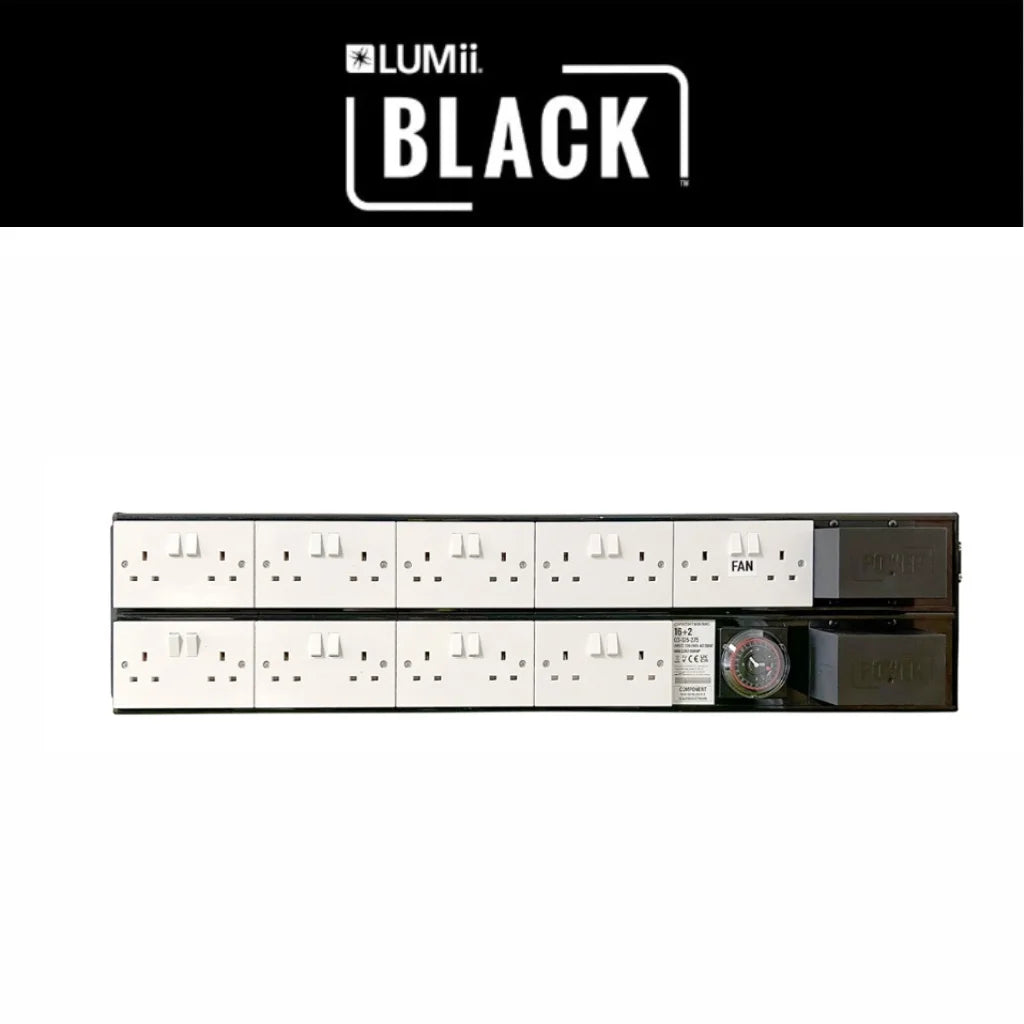

Technical Specifications:   16 way timer

• 220-240 V AC1
• 50/60 Hz
• Maximum load 80 A
• 16 timed output sockets
• 2 untimed output sockets
• Timer – 24 hr, 96 x 15-minute segments. Manual setting.

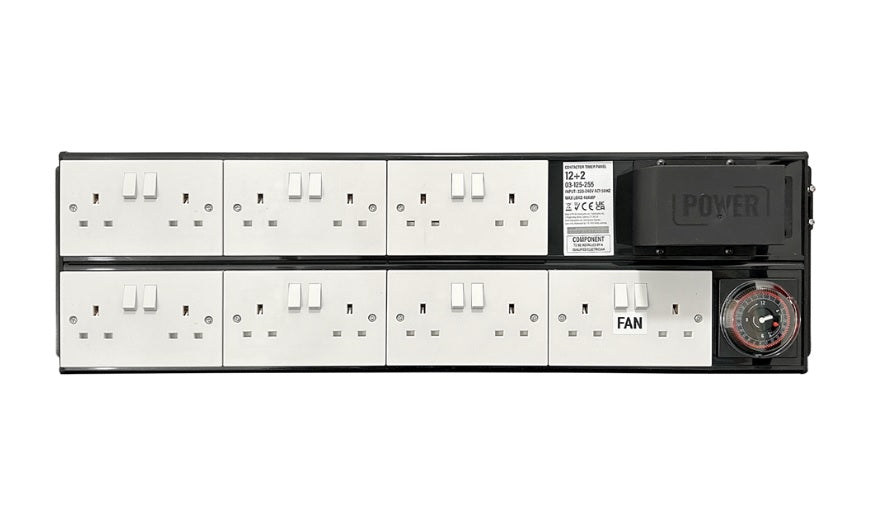

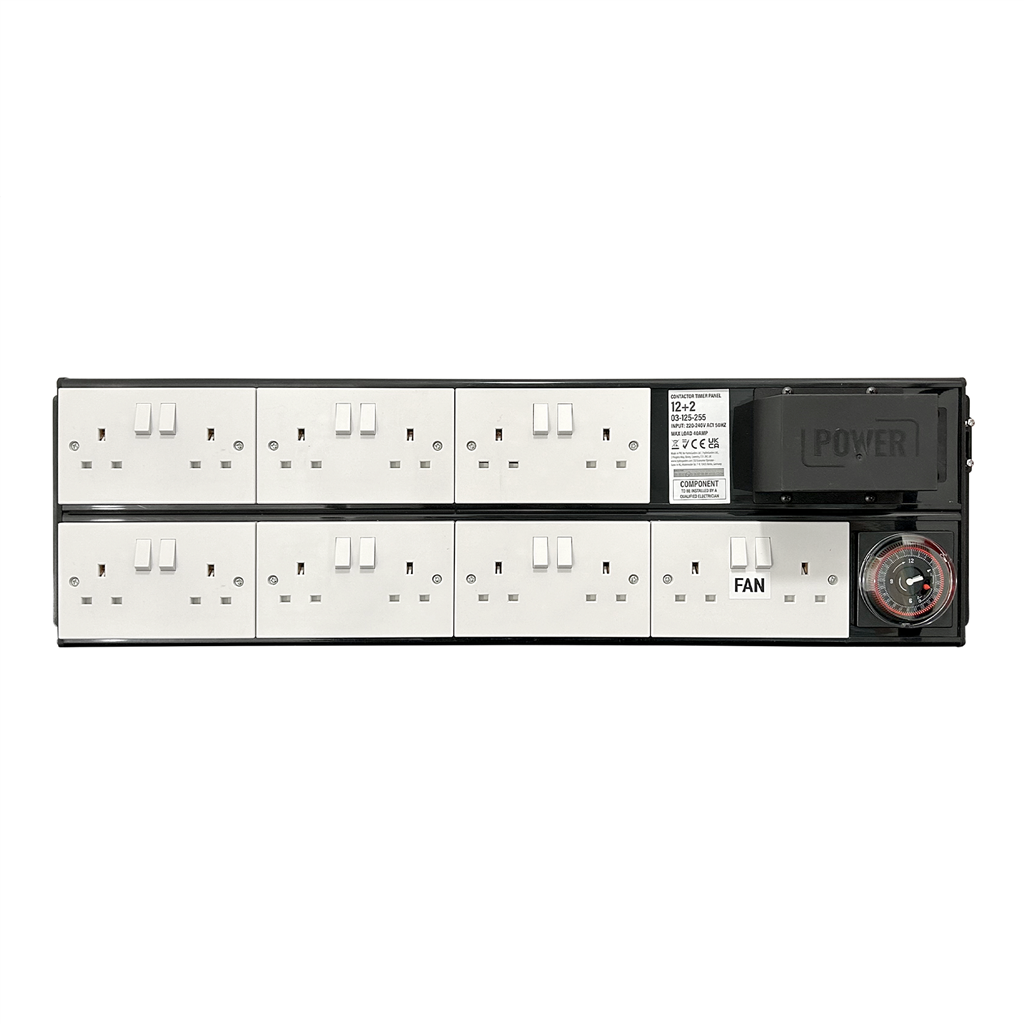

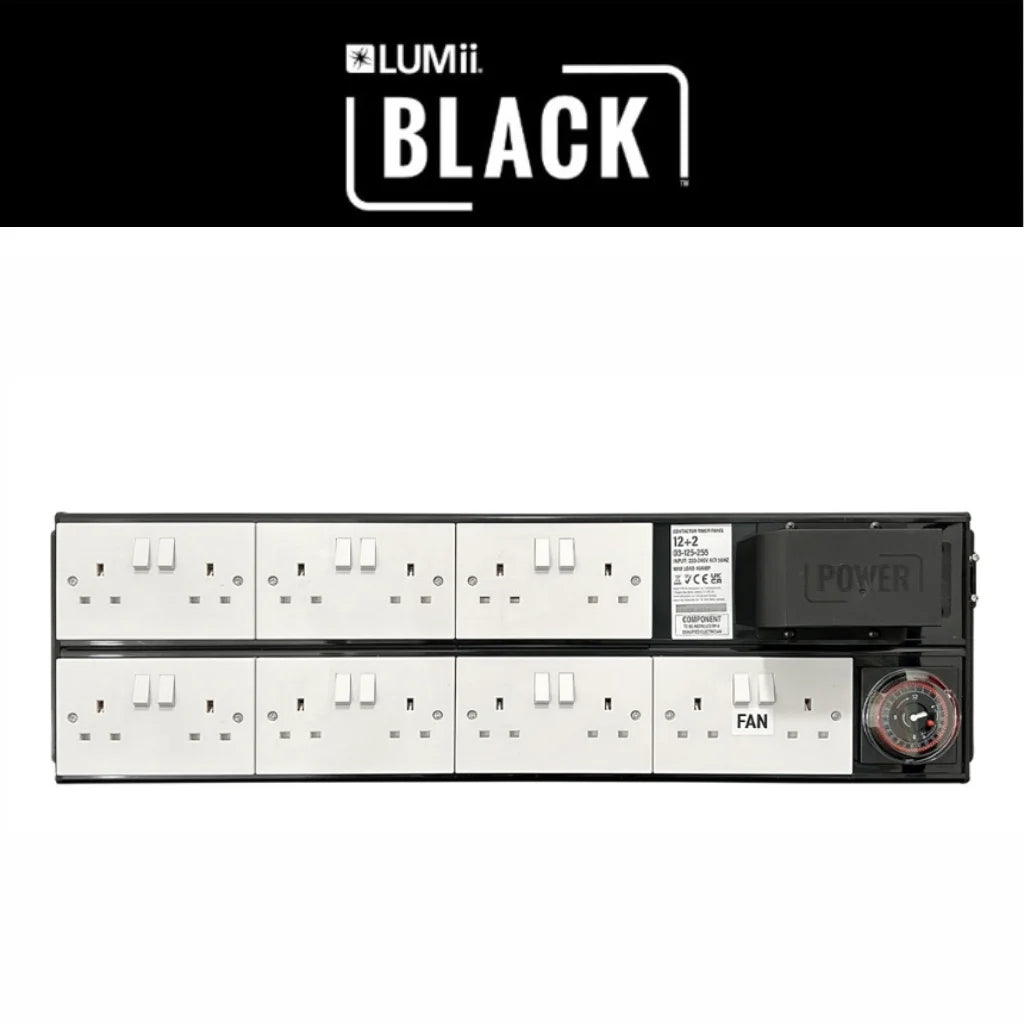

Technical Specifications:   12 way timer

• 220-240 V AC1
• 50/60 Hz
• Maximum load 40 A
• 12 timed output sockets
• 2 untimed output sockets
• Timer – 24 hr, 96 x 15-minute segments. Manual setting.
